PRODUCT CODE
RSNG0750-025
RSNG0750-025

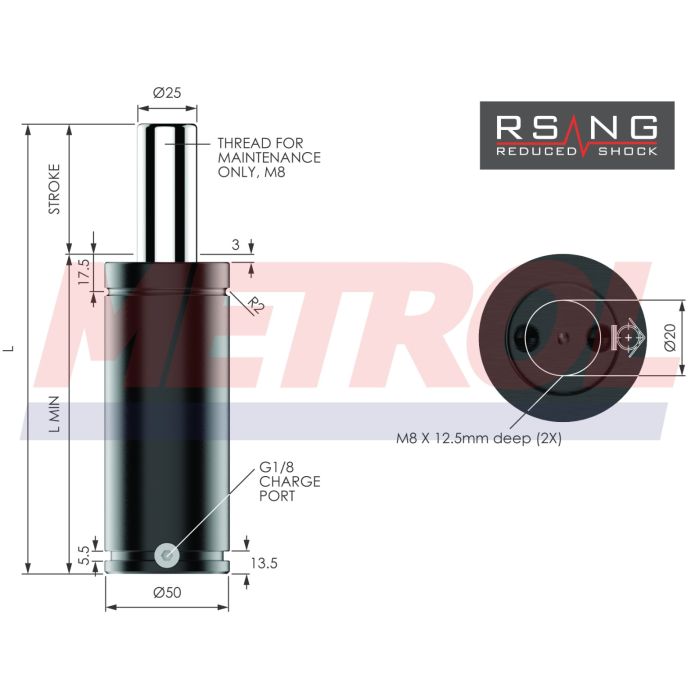

- Description:
Reduced impact gas spring with damped return
- BODY DIAMETER:50 mm
- PISTON DIAMETER:25 mm
- INITIAL FORCE:750 daN
- MAXIMUM FORCE:1160 daN
- STROKE:25 mm
- L MIN:120 mm
- LENGTH:145 mm
- SAFETY MARGIN:3 mm
- PCD:20 mm
- TAPPED HOLE DIAMETER:M8
- TAPPED HOLE DEPTH:12.5 mm
- WEIGHT:1.44 Kg
- MAX PRESSURE:150 Bar
- MIN PRESSURE:20 Bar
- MAX PISTON VELOCITY:1.6M/Sec
