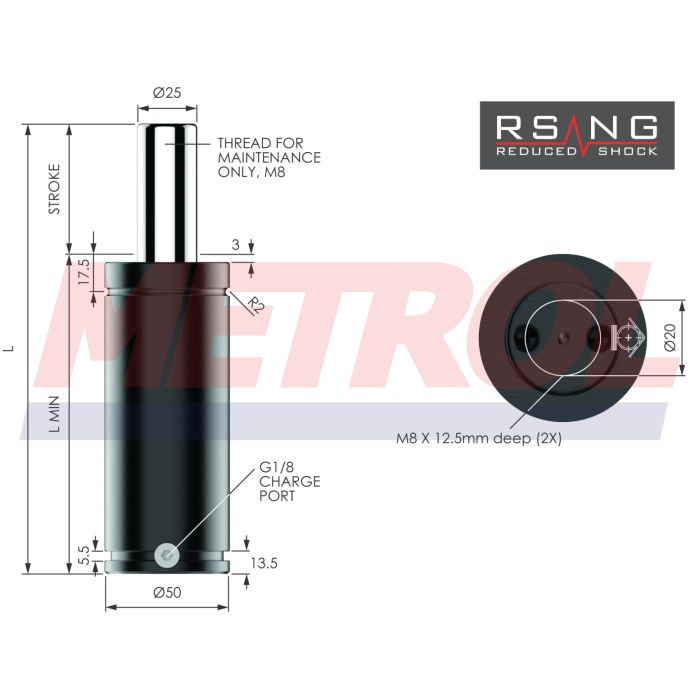

Nitrogen Gas Spring - RSNG0750-100
SKU
RSNG0750-100
| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 100 |
| L Min (mm) | 195 |
| Full Length (mm) | 295 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 12.5 |
| Initial Force (N) | 7500 |
| Max Force (N) | 12000 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
-
Product codeProduct DescriptionStock Status
-
RSNG0750-100Nitrogen Gas Spring - RSNG0750-100Chat or Contact us
