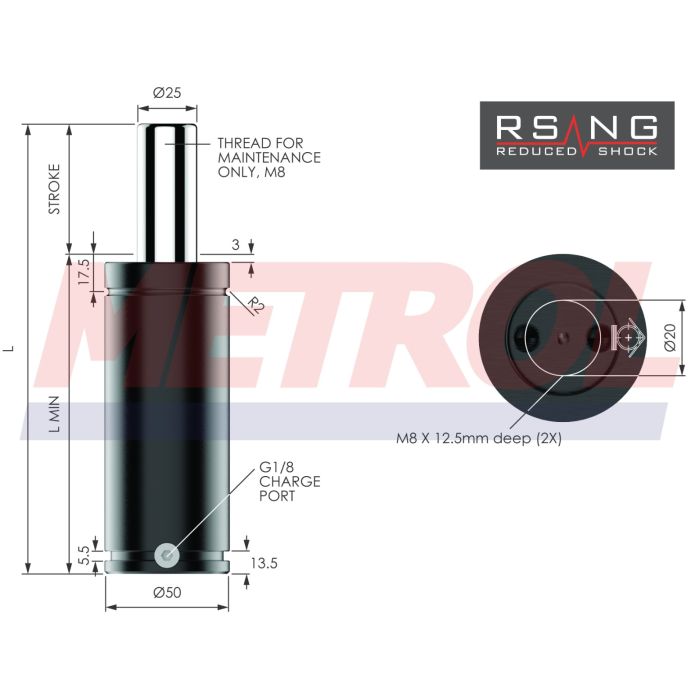

Nitrogen Gas Spring - RSNG0750-125
SKU
RSNG0750-125
| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 125 |
| L Min (mm) | 220 |
| Full Length (mm) | 345 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 12.5 |
| Initial Force (N) | 7500 |
| Max Force (N) | 12000 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
