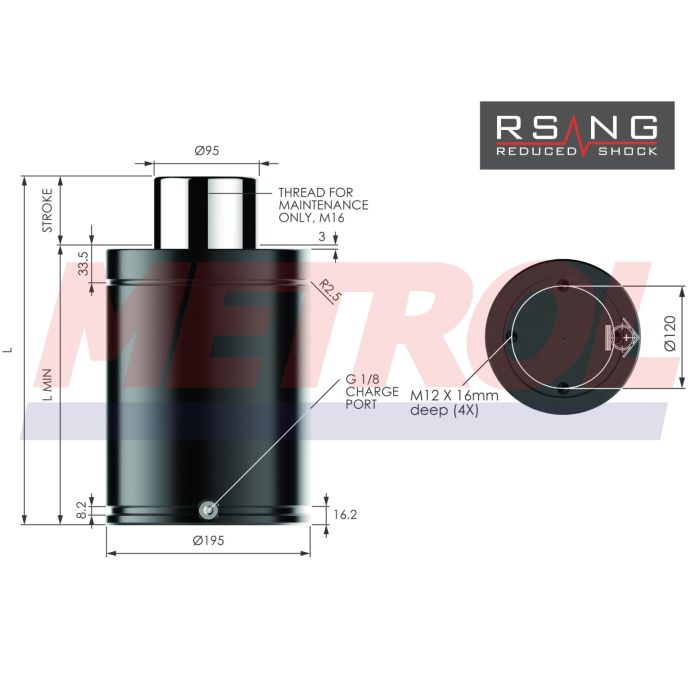

Nitrogen Gas Spring - RSNG10000-160
SKU
RSNG10000-160
| Body Dia. (mm) | 0301 |
|---|---|
| Piston Dia. (mm) | 95 |
| Stroke (mm) | 160 |
| L Min (mm) | 320 |
| Full Length (mm) | 480 |
| Mounting Options | Front Flange, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 100000 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
-
Product codeProduct DescriptionStock Status
-
RSNG10000-160Nitrogen Gas Spring - RSNG10000-160Chat or Contact us
