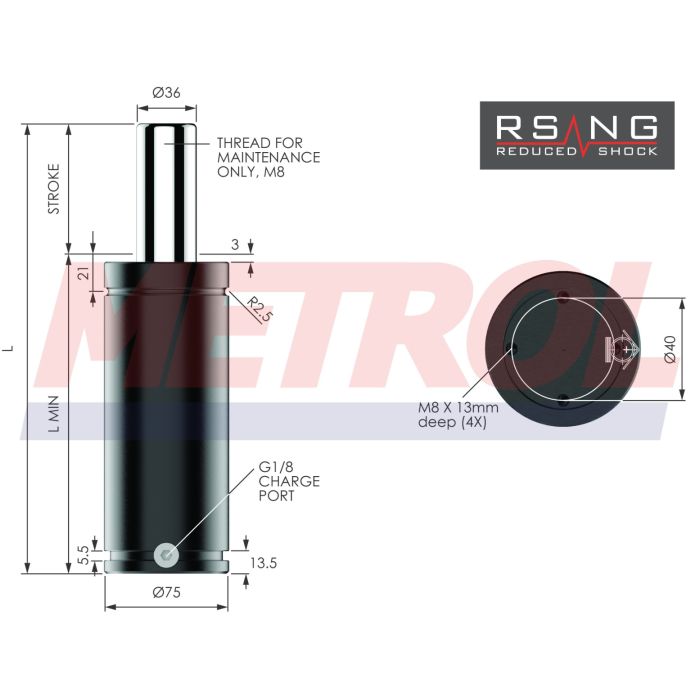

Nitrogen Gas Spring - RSNG1500-300
SKU
RSNG1500-300
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 300 |
| L Min (mm) | 410 |
| Full Length (mm) | 710 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 15000 |
| Max Force (N) | 22000 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
