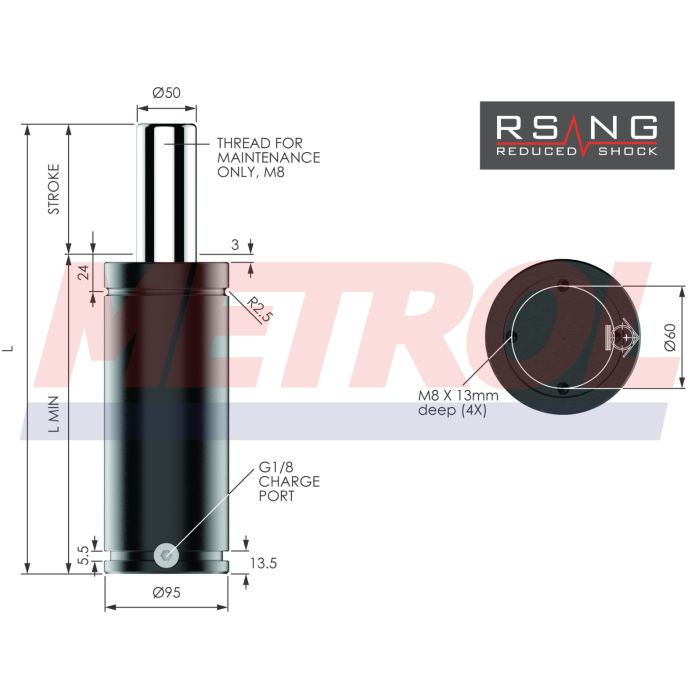

Nitrogen Gas Spring - RSNG3000-050
SKU
RSNG3000-050
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 50 |
| Stroke (mm) | 50 |
| L Min (mm) | 170 |
| Full Length (mm) | 220 |
| Mounting Options | Front Flange, Square Flange, Square Front Flange |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 30000 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
-
Product codeProduct DescriptionStock Status
-
RSNG3000-050Nitrogen Gas Spring - RSNG3000-050Chat or Contact us
