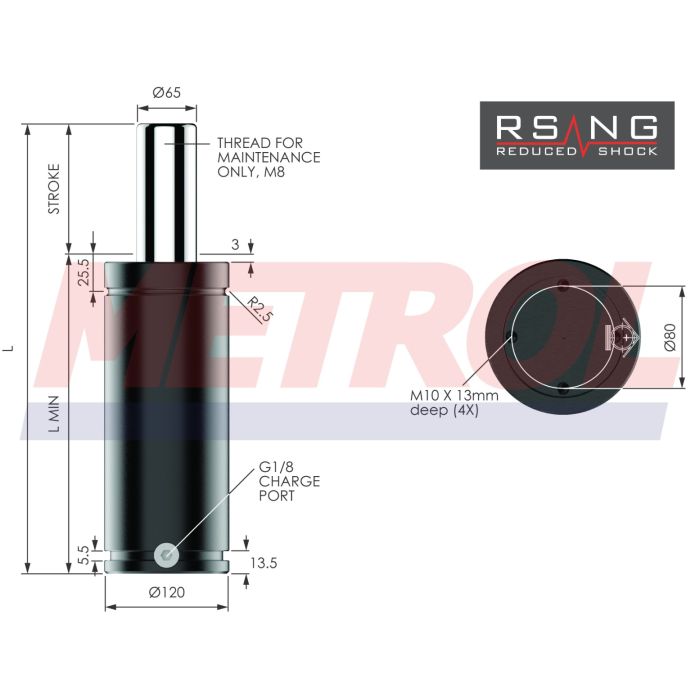

Nitrogen Gas Spring - RSNG5000-100
SKU
RSNG5000-100
| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 65 |
| Stroke (mm) | 100 |
| L Min (mm) | 240 |
| Full Length (mm) | 340 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 50000 |
| Max Force (N) | 75500 |
| Certification | PED 2014/68/EU |
Product Enquiry
Reduced impact gas spring with damped return
