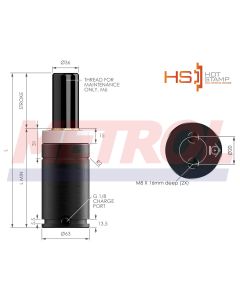

HS-G-EX1500-125 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 125
- L Min (mm): 189
- Full Length (mm): 314
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-100 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 100
- L Min (mm): 164
- Full Length (mm): 264
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-080 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 80
- L Min (mm): 144
- Full Length (mm): 224
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-063 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 63
- L Min (mm): 127
- Full Length (mm): 190
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-050 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 50
- L Min (mm): 114
- Full Length (mm): 165
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-038 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 38
- L Min (mm): 102
- Full Length (mm): 140
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-G-EX1500-025 Nitrogen Gas Spring, 1500daN ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 25
- L Min (mm): 89
- Full Length (mm): 115
- Mounting Options: End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -

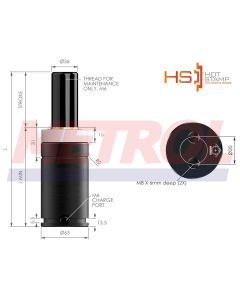

HS-EX1500-125 Nitrogen Gas Spring, 1500daN Fo ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 125
- L Min (mm): 181
- Full Length (mm): 306
- Mounting Options: Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-EX1500-100 Nitrogen Gas Spring, 1500daN Fo ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 100
- L Min (mm): 156
- Full Length (mm): 256
- Mounting Options: Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A -
HS-EX1500-080 Nitrogen Gas Spring, 1500daN Fo ...SPECIFICATIONS AVAILABLE
- Body Dia. (mm): 63
- Piston Dia. (mm): 36
- Stroke (mm): 80
- L Min (mm): 136
- Full Length (mm): 216
- Mounting Options: Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Price Range:
P.O.A
